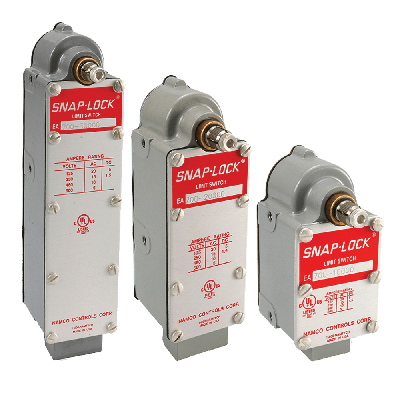

EA700 Series Limit Switch

The versatility of SNAP-LOCK^® Technology is gained through the use of series of uniquely designed cams in the Heavy Duty EA700 Series Limit Switch. This limit switch series features a cam and cam mechanism which allow bi-directional operation and generous over travel. One of our most popular limit switch series, the EA700 Series features either one normally open and one normally closed (1NO/1NC), two normally open and two normally closed (2NO/2NC) or three normally open and three normally closed (3NO/3NC) circuits.

The EA700 Series limit switch is engineered with Cam Type SNAP-LOCK Technology in a die-cast zinc housing for corrosion resistance. Its heavy duty cam operation allows for fast contact action. Another key benefits of the EA700 Series is its flexibility of motion, clockwise and counter-clockwise operation options, and its light operating torque. This series is available in standard, wide or long mounting.

GENERAL DATASHEET

EA700 SERIES PART NUMBERS

Filter products

Clear filter

by [Limit Switch Shopify] Contact Material
by [Limit Switch Shopify] Actuation Method
- Lever
- Rod
by [Limit Switch Shopify] Shaft Position
- Front Shaft
- Reverse Shaft

Sort by:

60 products

1 2 3

Limit Switch, Triple Pole

EA700-90100

Limit Switch, Standard Environment, Long Mount, TPDT, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-90001

Limit Switch, Standard Environment, Long Mount, TPDT, CCW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-90000

Limit Switch, Standard Environment, Long Mount, TPDT, CW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-60100

Limit Switch, Standard Environment, Wide Mount, TPDT, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-60001

Limit Switch, Standard Environment, Wide Mount, TPDT, CCW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-60000

Limit Switch, Standard Environment, Wide Mount, TPDT, CW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-30100

Limit Switch, Standard Environment, Standard Mount, TPDT, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-30001

Limit Switch, Standard Environment, Standard Mount, TPDT, CCW, NEMA 1,4,13

(?)
Limit Switch, Triple Pole

EA700-30000

Limit Switch, Standard Environment, Standard Mount, TPDT, CW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-86700

Limit Switch, Standard Environment, Long Mount, DPDT, Maintain Contact & Spring Return Lever, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-56700

Limit Switch, Standard Environment, Wide Mount, DPDT, Maintain Contact & Spring Return Lever, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-26700

Limit Switch, Standard Environment, Standard Mount, DPDT, Maintain Contact & Spring Return Lever, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-86000

Limit Switch, Standard Environment, Long Mount, DPDT, Maintain Contact & Lever Position, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-56000

Limit Switch, Standard Environment, Wide Mount, DPDT, Maintain Contact & Lever Position, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-26000

Limit Switch, Standard Environment, Standard Mount, DPDT, Maintain Contact & Lever Position, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-85108

Limit Switch, Standard Environment, Long Mount, DPDT, Neutral Position - All Contacts Closed, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-55108

Limit Switch, Standard Environment, Wide Mount, DPDT, Neutral Position - All Contacts Closed, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-25108

Limit Switch, Standard Environment, Standard Mount, DPDT, Neutral Position - All Contacts Closed, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-85102

Limit Switch, Standard Environment, Long Mount, DPDT, Neutral Position - All Contacts Open, CW/CCW, NEMA 1,4,13

(?)
Limit Switch, Double Pole

EA700-55102

Limit Switch, Standard Environment, Wide Mount, DPDT, Neutral Position - All Contacts Open, CW/CCW, NEMA 1,4,13

(?)

60 products

1 2 3

How to Select A Lever for Your Limit Switch

Operating levers link your NAMCO limit switch and the moving part of your application. Users must select levers separate from limit switches. It is important to choose an operating lever to suit the needs of your application. The video below provides a quick overview on selecting a lever and a highlight of NAMCO lever options.

Choose Lever by Type:

Knee Action Straight Type (Style KR)

Knee Action Offset Type (Style KRO)

Manual Levers

Adjustable Straight

Adjustable Offset

Belt Misalignment Levers (Style VR and Style YR)

Rod Levers

Technical Data

Single Pole Double Throw (SPDT)
Double Pole Double Throw (DPDT)
Triple Pole Double Throw (TPDT)
Cam Type SNAP-LOCK Technology
One normally open and one normally closed (1NO/1NC)
Two normally open and two normally closed (2NO/2NC)
Three normally open and three normally closed (3NO/3NC)
Form “Z” contact arrangement
Meets NEMA 1,4 & 13 requirements. Enclosure is watertight, oil & dust tight
Contacts are made of silver alloy. Contact shifting mechanism is locked in position by the latches until switch lever is actuated.
Temperature Range: -20º C to +90º C
Operating lever is adjustable to any required position. Operating lever angles (CW or CCW) maximum degrees of trip travel, reset travel, as well as total lever travel, are determined by the cam selected
Wiring space is ample for up to size 12 wire with easily accessible terminal screws
Many different options available including: precious metal contacts; high temperature (0º C to 150º C) components and lubricants; and low temperature (-40º C to 90º C) components and lubricants
Weight: Approx. 3.5 lbs
For Ordering Information, see EA700 Series Specification Sheet.
Please note, operating levers are sold separately.

Interested in the EA700 Series? Contact us today!

GENERAL DATASHEET
