Note: Image is representative of the series of product but exact product may vary based on configuration. See below for details.
5DP7 Series
General Purpose DC Contactors
The 5DP7 Series General Purpose DC Contactor offers a 75 amp. rating for adjustable speed drive circuit applications.
Qualifications
CSA & UL Component Rated
Features
- Silicon Controlled Rectifier switching
- Combination of Normally Open and Normally Closed power contacts
- Permanent Magnetic Blowouts
- Reduced Panel Space made possible by compact design
- Built- in N.C. dynamic brake power contact
- Stainless Steel Springs
- Molded Housing
- Molded Coil
- Free- Floating Armature- Magnet Frame
- Auxiliary Contacts
- Pressure Type Terminals
Interested in the 5DP7 Series? Contact us today!
Technical Data
Electrical Rating: 75 amp
Number of Main Contacts: 1-3 Poles
Number of Main Contacts: 1-3 Poles
Available Main Contact Configuration: NO, NC, NO & NC
Operating Voltage (Thermal Rating): 500VDC (600VDC)
NO Continuous Contact Rating: 75A
NC Intermittent Contact Rating @ 500VDC (Dynamic Brake-Make Only): 150A
NC Intermittent Contact Rating @ 160VDC (Jogging-Break Only): 50A
Coil Voltage Options: 120VAC, 240VAC, 120VDC, 240VDC
Maximum Number of Auxiliary Contacts: 8
Available Auxiliary Contact Configuration: NO,NC,NO&NC
Auxiliary Contact Rating @ 120VAC (Continuous/Inrush): 6A/ 60A
Auxiliary Contact Rating @ 280VAC (Continuous/Inrush): 3A/ 30A
Auxiliary Contact Rating @ 480VAC (Continuous/Inrush): 1.5A/ 15A
Auxiliary Contact Rating @ 600VAC (Continuous/Inrush): 1.2A/ 12A
Auxiliary Contact Rating @ 125VDC (Nominal): 1.1A
Auxiliary Contact Rating @ 250VDC (Nominal): 0.55A
Horsepower Rating @ 240V: 20HP
Horsepower Rating @ 500V: 40HP
Horsepower Rating @ 600V: 50HP
Auxiliary Contact Rating @ 280VAC (Continuous/Inrush): 3A/ 30A
Auxiliary Contact Rating @ 480VAC (Continuous/Inrush): 1.5A/ 15A
Auxiliary Contact Rating @ 600VAC (Continuous/Inrush): 1.2A/ 12A
Auxiliary Contact Rating @ 125VDC (Nominal): 1.1A
Auxiliary Contact Rating @ 250VDC (Nominal): 0.55A
Horsepower Rating @ 240V: 20HP
Horsepower Rating @ 500V: 40HP
Horsepower Rating @ 600V: 50HP
Average Contactor Closing Time: 33mSec
Average Contactor Opening Time: 30 mSec
Average Contactor Opening Time: 30 mSec
Operating Temperature Range: -20C to +57C
Storage Temperature Range: -40C to +70C
Storage Temperature Range: -40C to +70C
* = Consult Factory for Custom Configurations

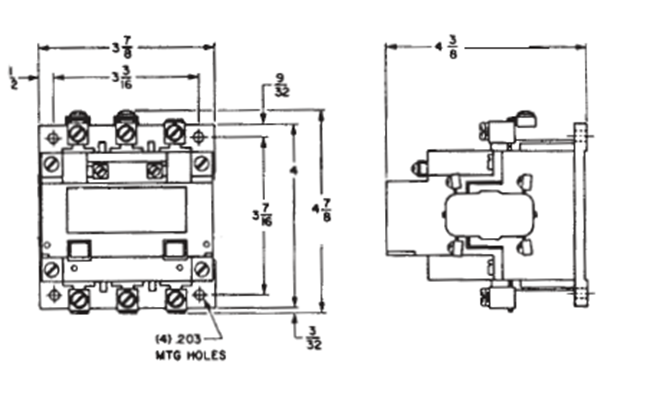

Dimensions
