5DP9 Series
General Purpose DC Contactors

The 5DP9 Series General Purpose DC Contactor offers a 260 amp. rating for adjustable speed drive circuit applications.

Qualifications
CSA & UL Component Rated

    Features

    • Silicon Controlled Rectifier switching
    • Combination of Normally Open and Normally Closed power contacts
    • Permanent Magnetic Blowouts
    • Reduced Panel Space made possible by compact design
    • Built- in N.C. dynamic brake power contact
    • Stainless Steel Springs
    • Molded Housing
    • Molded Coil
    • Free- Floating Armature- Magnet Frame
    • Auxiliary Contacts
    • Pressure Type Terminals

    Interested in the 5DP9 Series? Contact us today!


    Technical Data
    Electrical Rating: 260 amp
    Number of Main Contacts: 1-3 Poles
    Available Main Contact Configuration: NO, NC, NO & NC
    Operating Voltage (Thermal Rating): 500VDC (600VDC)
    NO Continuous Contact Rating: 240A
    NC Intermittent Contact Rating @ 500VDC (Dynamic Brake-Make Only):  387A
    NC Intermittent Contact Rating @ 160VDC (Jogging-Break Only):  135A
    Coil Voltage Options: 120VAC, 240VAC, 120VDC, 240VDC
    Maximum Number of Auxiliary Contacts: 8
    Available Auxiliary Contact Configuration:  NO,NC,NO&NC
    Auxiliary Contact Rating @ 120VAC (Continuous/Inrush):  6A/ 60A
    Auxiliary Contact Rating @ 280VAC (Continuous/Inrush):  3A/ 30A
    Auxiliary Contact Rating @ 480VAC (Continuous/Inrush):  1.5A/ 15A
    Auxiliary Contact Rating @ 600VAC (Continuous/Inrush):  1.2A/ 12A
    Auxiliary Contact Rating @ 125VDC (Nominal):  1.1A
    Auxiliary Contact Rating @ 250VDC (Nominal):  0.55A
    Average Contactor Closing Time:  33mSec
    Average Contactor Opening Time:  30 mSec
    Operating Temperature Range:  -20C to +57C
    Storage Temperature Range:  -40C to +70C
    * = Consult Factory for Custom Configurations

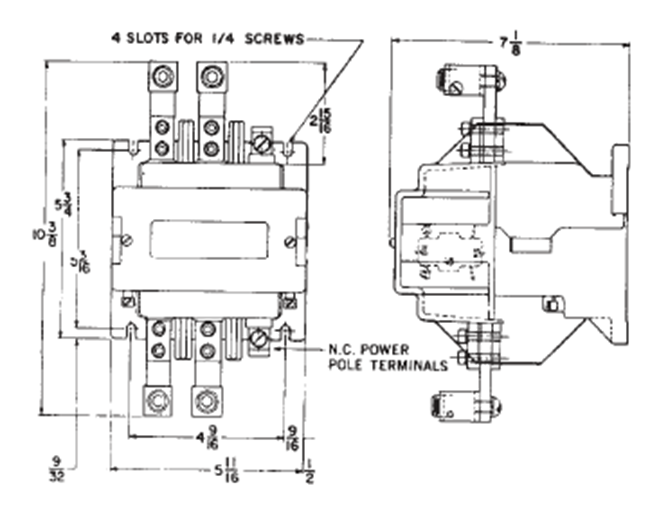

    Dimensions
