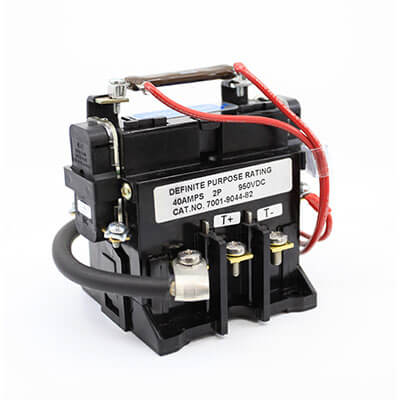

Note: Image is representative of the series of product but exact product may vary based on configuration. See below for details.
certs

7001 Series
General Purpose DC Contactors

The 7001 Series General Purpose DC Contactor offers a 40 amp. rating for adjustable speed drive circuit applications.

Qualifications
CSA & UL Component Rated

    Features

    • Silicon Controlled Rectifier switching
    • Combination of Normally Open and Normally Closed power contacts
    • Permanent Magnetic Blowouts
    • Reduced Panel Space made possible by compact design
    • Built- in N.C. dynamic brake power contact
    • Stainless Steel Springs
    • Molded Housing
    • Molded Coil
    • Free- Floating Armature- Magnet Frame
    • Auxiliary Contacts
    • Pressure Type Terminals

    Interested in the 7001 Series? Contact us today!


    Technical Data

    Electrical Rating: 40 amp
    Number of Main Contacts: 1-3 Poles
    Available Main Contact Configuration: NO, NC, NO & NC
    Operating Voltage (Thermal Rating): 500VDC (600VDC)
    NO Continuous Contact Rating: 40A
    NC Intermittent Contact Rating @ 500VDC (Dynamic Brake-Make Only):  70A
    NC Intermittent Contact Rating @ 160VDC (Jogging-Break Only):  23A
    Coil Voltage Options: 120VAC, 240VAC, 120VDC, 240VDC
    Maximum Number of Auxiliary Contacts: 4
    Available Auxiliary Contact Configuration:  NO,NC,NO&NC
    Auxiliary Contact Rating @ 120VAC (Continuous/Inrush):  6A/ 60A
    Auxiliary Contact Rating @ 280VAC (Continuous/Inrush):  3A/ 30A
    Auxiliary Contact Rating @ 480VAC (Continuous/Inrush):  1.5A/ 15A
    Auxiliary Contact Rating @ 600VAC (Continuous/Inrush):  1.2A/ 12A
    Average Contactor Closing Time:  33mSec
    Average Contactor Opening Time:  30 mSec
    Operating Temperature Range:  -20C to +57C
    Storage Temperature Range:  -40C to +70C
    * = Consult Factory for Custom Configurations
