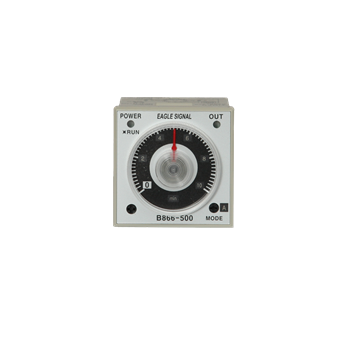

B866 Multi-Function Analog Timer

B866-500

The B856 features a compact 1/16 DIN package, precise digital setting, versatile functionality, and a straightforward button-per-digit interface. It can be easily programmed to perform any standard timing operation: On-Delay, Off-Delay, Interval, or Repeat Cycle. A unique On-Delay/ Interval Mode can, in many cases, perform the function of two separate timers.

Specifications

Function Type:
  • Programmable Multi-Function
Voltage:
  • 24 VAC
  • 24 VDC
  • 120 VAC
  • 240 VAC
Frequency:
  • 50 Hz
  • 60 Hz
  • DC
Timing Mode:
  • On Delay/Standard Start
  • Off Delay/Standard Start
  • Interval/One Shot
  • Symmetrical Repeat Cycle
  • Delay Interval
Size:
1/16 DIN - 48x48mm
Display:
Dial
Time Display:
  • Multi-Programmable
Output:
Relay or Switch
Certifications:
  • CAN-UL
  • US-UL
  • CE
Environmental:
4X NEMA l IP 65
Mounting Type:
Surface l Panel

    Product files and documents


    B866 Multi Function Analog Timer.pdf PDF file, 453.84 KB
    B856-500 and 511 Manual Rev B.pdf PDF file, 403.93 KB
