Applications

Material Handling

Two critical components of ensuring plant operations run smoothly and without interruption are identifying material levels (such as in feeder bowl applications), and part or machine indexing (such as in conveyor belt positioning). Loss of signal or movement can shut down an otherwise smoothly running operation.

Designed and manufactured in the US, Namco switches and solenoids provide reliable indication and movement on critical plant equipment, the failure of which would be extremely costly in terms of time and other resources.

  • EB200-20155

    EB200

    The EB200 Series Industrial Solenoids are available in standard base and side mountings and have stainless steel saddle type retainers. They are available in stacking widths of 1/2, 3/4, 1 and 1-1/4 inches. Standard versions available for 115, 230, 460V and 60 Hz.

    Shop Series

  • red namco

    EB450

    The EB 450 Series Solenoids are available with push and pull force of 7 to 11 pounds and a stroke up to 1 inch. The EB450 Series is rated for continuous duty. Available in staking widths of 3/4 and 1 inch. They are designed with stainless steel saddle stops. All models have through holes in stack for mounting.

    Shop Series

  • red namco

    EB600

    The EB 600 Solenoids are available in pull or push versions with stacking widths of 1/2, 3/4 and 1. Designed with stainless steel saddle stops and have .5 inch stroke maximum. All models have through holes in stack for mounting.

    Shop Series

  • red namco

    EB710

    The EB710 Series Industrial Solenoids are designed for use in Class B insulation systems with ambient temperatures ranging from -10°C to 30°C with occasional excursions to 40°C. They are available in stacking widths of 1/4, 1, 1-1/4 and 2 inches and feature universal mounting brackets. They can be equipped with special coils to enable them to function under a wide range of severe industrial environments.

    Shop Series

  • EA700 Single Pole

    Single Pole

    Switches which make and break one circuit. Circuit provides one normally open and one normally closed contact.

    Shop Series

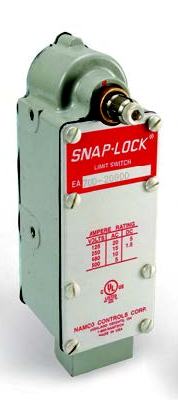

  • EA700 Double Pole

    Double Pole

    Switches which make and break two circuits. Circuit provides one normally open and one normally closed contact for each pole.

    Shop Series

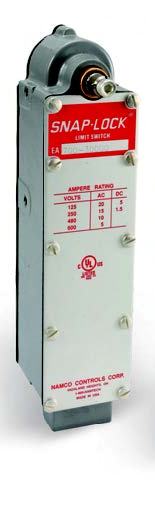

  • EA700 Triple Pole

    Triple Pole

    Switches which make and break three circuits. Circuit provides one normally open and one normally closed contact for each pole.

    Shop Series
