Thomson Nyliner plastic flange bearings offer more retention capability than a traditional sleeve bearing for applications where radial and/ or axial loads are expected. Other features of Thomson Nyliner plastic flange bearings include anti-rotation keys that eliminate both linear and rotational motion and lack of fluctuation. Thin wall construction of these bearings assures that they hold up in demanding applications. Also, like straight sleeve bearings, these plastic flange bearings feature the standard axial compensation gap to accommodate changes in temperature and humidity.

Flanges permit our bearings to take both axial and radial loads, while providing more secure retention than plain sleeve types. The anti-rotation key featured on our plastic flanged bearing minimizes axial motion. Select plastic flanged bearings are available in Thomson Nyliner high-performance polymer.

Clearances

The minimum diametral shaft to bearing clearance normally recommended for flanged bearings is .001˝ for bearing I.D. sizes from 1.000˝ to 1.250˝; and .002˝ for I.D. sizes from 1.250˝ to 1.500˝.

These clearances are recommended to allow proper running clearance for trouble-free operation. Bearings will expand slightly due to frictional heat and moisture absorption. The majority of this expansion is accommodated by the compensation gap. Changes in wall thickness are minimal due to the thin wall construction of Thomson Nyliner bearings.


Standard Flanged Bearing

Standard Flanged Bearing (Inches)

Part
Number
Nominal Bearing
Inner Diameter
Bearing Inner Diameter Maximum
Shaft Diameter
Housing Bore Bearing Length "L"
(+0, -1/64)
Radius "R" Maximum Flange Diameter
(± 1/64)
Flange "t"
(+.000,-.005)
Inner Diameter Tolerance
3L3-F 3/16 0.1885 + .001 / – .000 0.1875 0.2340 3/16 0.010 5/16 0.025
4L4-F 1/4 0.2510 + .001 / – .000 0.2500 0.2965 1/4 0.010 13/32 0.025
5L5-F 5/16 0.3135 + .001 / – .000 0.3125 0.3745 5/16 0.015 1/2 0.030
5L7-F 5/16 0.3135 + .001 / – .000 0.3125 0.3745 5/16 0.015 1/2 0.030
5L10-F 5/16 0.3135 + .001 / – .000 0.3125 0.3745 5/16 0.015 1/2 0.030
6L6-F 3/8 0.3760 + .001 / – .000 0.3750 0.4370 3/8 0.015 19/32 0.030
6L11-F 3/8 0.3760 + .001 / – .000 0.3750 0.4370 3/8 0.015 19/32 0.030
7L7-F 7/16 0.4385 + .001 / – .000 0.4375 0.4995 7/16 0.015 21/32 0.030
8L31⁄2-F 1/2 0.5010 + .001 / – .000 0.5000 0.5620 1/2 0.015 3/4 0.030
8L51⁄2-F 1/2 0.5010 + .001 / – .000 0.5000 0.5620 1/2 0.015 3/4 0.030
8L8-F 1/2 0.5010 + .001 / – .000 0.5000 0.5620 1/2 0.015 3/4 0.030
8L12-F 1/2 0.5010 + .002 / – .000 0.5000 0.5620 1/2 0.015 3/4 0.031
10L51⁄2-F 5/8 0.6260 + .001 / – .000 0.6250 0.6870 5/8 0.015 15/16 0.030
10L7-F 5/8 0.6260 + .001 / – .000 0.6250 0.6870 5/8 0.015 15/16 0.030
10L10-F 5/8 0.6260 + .001 / – .000 0.6250 0.6870 5/8 0.015 15/16 0.030
10L14-F 5/8 0.6260 + .001 / – .000 0.6250 0.6870 5/8 0.015 15/16 0.030
10L18-F 5/8 0.6260 + .001 / – .000 0.6250 0.6870 5/8 0.015 15/16 0.030
12L12-F 3/4 0.7510 + .001 / – .000 0.7500 0.8120 3/4 0.015 1 1/8 0.030
12L18-F 3/4 0.7510 + .001 / – .000 0.7500 0.8120 3/4 0.015 1 1/8 0.030
14L71⁄2-F 7/8 0.8760 + .001 / – .000 0.8750 0.9370 7/8 0.015 1 5/16 0.030
14L14-F 7/8 0.8760 + .001 / – .000 0.8750 0.9370 7/8 0.015 1 5/16 0.030
16L16-F 1 1.0015 + .0015 / – .000 1.0000 1.0935 1 0.020 1 1/2 0.045
18L18-F 1 1/8 1.1265 + .0015 / – .000 1.1250 1.2185 1 1/8 0.020 1 11/16 0.045
20L20-F 1 1/4 1.2515 + .0015 / – .000 1.2500 1.3435 1 1/4 0.020 1 7/8 0.045
24L24-F 1 1/2 1.5020 + .002 / – .000 1.5000 1.6245 1 1/2 0.025 2 1/4 0.0600

Standard Flanged Bearing (Millimeters)

Part
Number
Nominal Bearing Inner Diameter Bearing
Inner Diameter
Maximum
Shaft Diameter
Housing Bore Bearing Length "L" (+0, -.4) Radius "R" Maximum Flange Diameter (±4) Flange "t" (+0, -.13)
8000A 4 4.025 4 5.2 4 0.4 7 0.6
8001A 5 5.025 5 6.2 5 0.4 8 0.6
8002A 6 6.025 6 7.2 6 0.4 9.5 0.6
8003A 8 8.025 8 9.6 8 0.4 12 0.8
8004A 10 10.025 10 11.6 10 0.4 15 0.8
8005A 12 12.025 12 13.6 12 0.4 18 0.8
8006A 14 14.025 14 15.6 14 0.4 21 0.8
8007A 16 16.025 16 17.6 16 0.4 24 0.8
8008A 20 20.025 20 21.6 20 0.4 30 0.8
8009A 25 25.025 25 27.4 25 0.4 37.5 1.2

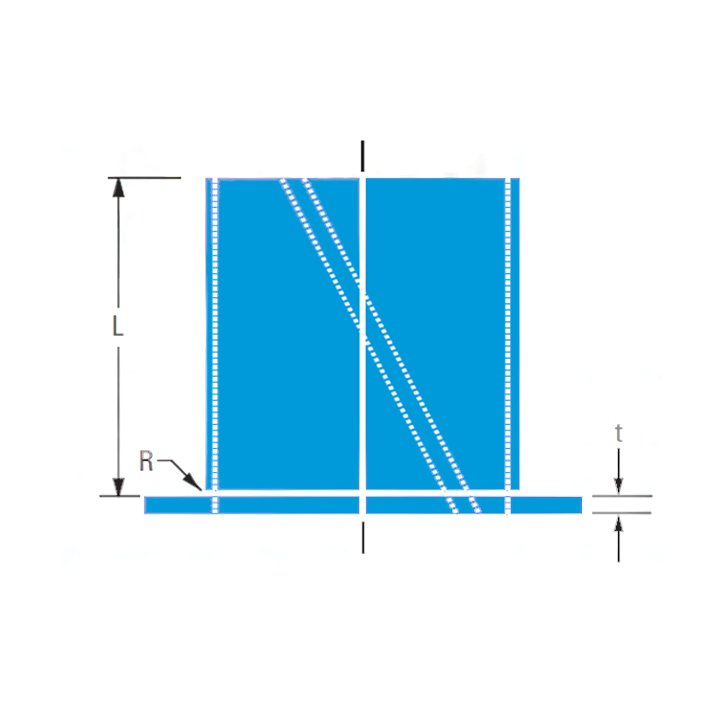

Standard Flanged Bearing Drawing



Standard Flanged Bearing With Anti-Rotation Key

Part
Number
Nominal Bearing Inner Diameter Bearing Inner Diameter Maximum
Shaft Diameter
Housing Bore Bearing Length "L" (+0, -1/64) Radius Maximum Flange Diameter (± 1/64) Flange "t"(+.000,-.005) Anti-Rotation Key "w"(+0, -1/64) Anti-Rotation Key "l"
(+0, -1/64)
Inner Diameter Tolerance
3L3-FK 3/16 0.1885 + .001 / –.000 0.1875 0.2340 3/16 0.010 5/16 0.025 1/16 1/16
4L4-FK 1/4 0.2510 + .001 / –.000 0.2500 0.2965 1/4 0.010 13/32 0.025 1/16 1/16
5L5-FK 5/16 0.3135 + .001 / –.000 0.3125 0.3745 5/16 0.015 1/2 0.030 3/32 3/32
5L7-FK 5/16 0.3135 + .001 / –.000 0.3125 0.3745 5/16 0.015 1/2 0.030 3/32 3/32
5L10-FK 5/16 0.3135 + .001 / –.000 0.3125 0.3745 5/16 0.015 1/2 0.030 3/32 3/32
6L6-FK 3/8 0.3760 + .001 / –.000 0.3750 0.4370 3/8 0.015 19/32 0.030 3/32 3/32
6L11-FK 3/8 0.3760 + .001 / –.000 0.3750 0.4370 3/8 0.015 19/32 0.030 3/32 3/32
7L7-FK 7/16 0.4385 + .001 / –.000 0.4375 0.4995 7/16 0.015 21/32 0.030 3/32 3/32
8L31⁄2-FK 1/2 0.5010 + .001 / –.000 0.5000 0.5620 1/2 0.015 3/4 0.030 3/32 3/32
8L51⁄2-FK 1/2 0.5010 + .001 / –.000 0.5000 0.5620 1/2 0.015 3/4 0.030 3/32 3/32
8L8-FK 1/2 0.5010 + .001 / –.000 0.5000 0.5620 1/2 0.015 3/4 0.030 3/32 3/32
8L12-FK 1/2 0.5010 + .002 / –.000 0.5000 0.5620 1/2 0.015 3/4 0.031 1/8 1/8
10L51⁄2-FK 5/8 0.6260 + .001 / –.000 0.6250 0.6870 5/8 0.015 15/16 0.030 1/8 1/8
10L7-FK 5/8 0.6260 + .001 / –.000 0.6250 0.6870 5/8 0.015 15/16 0.030 1/8 1/8
10L10-FK 5/8 0.6260 + .001 / –.000 0.6250 0.6870 5/8 0.015 15/16 0.030 1/8 1/8
10L14-FK 5/8 0.6260 + .001 / –.000 0.6250 0.6870 5/8 0.015 15/16 0.030 1/8 1/8
10L18-FK 5/8 0.6260 + .001 / –.000 0.6250 0.6870 5/8 0.015 15/16 0.030 1/8 1/8
12L12-FK 3/4 0.7510 + .001 / –.000 0.7500 0.8120 3/4 0.015 1 1/8 0.030 1/8 1/8
12L18-FK 3/4 0.7510 + .001 / –.000 0.7500 0.8120 3/4 0.015 1 1/8 0.030 1/8 1/8
14L71⁄2-FK 7/8 0.8760 + .001 / –.000 0.8750 0.9370 7/8 0.015 1 5/16 0.030 1/8 1/8
14L14-FK 7/8 0.8760 + .001 / –.000 0.8750 0.9370 7/8 0.015 1 5/16 0.030 1/8 1/8
16L16-FK 1 1.0015 + .0015 / –.000 1.0000 1.0935 1 0.020 1 1/2 0.045 5/32 5/32
18L18-FK 1 1/8 1.1265 + .0015 / –.000 1.1250 1.2185 1 1/8 0.020 1 11/16 0.045 5/32 5/32
20L20-FK 1 1/4 1.2515 + .0015 / –.000 1.2500 1.3435 1 1/4 0.020 1 7/8 0.045 5/32 5/32
24L24-FK 1 1/2 1.5020 + .002 / –.000 1.5000 1.6245 1 1/2 0.025 2 1/4 0.0600 3/16 3/16

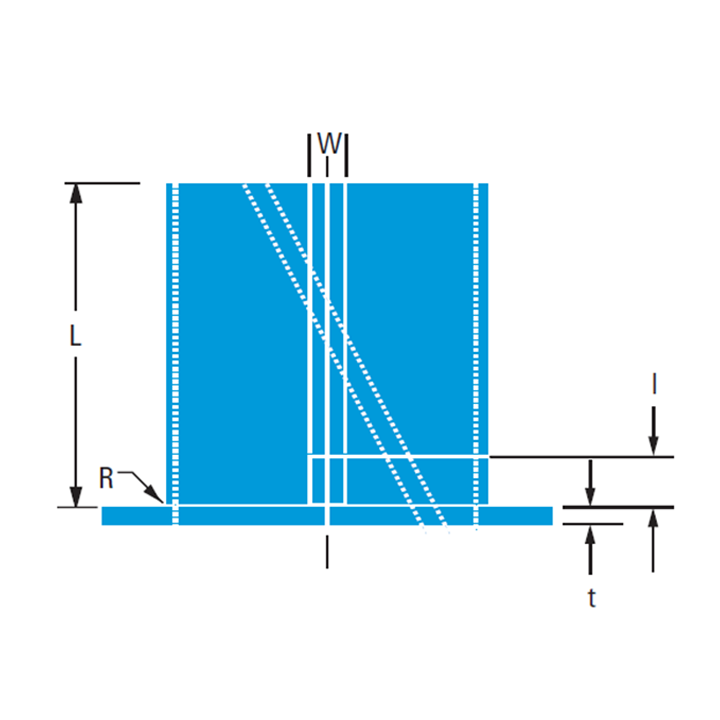

Flanged Bearing w/ Anti-Rotation Key
