Knee Action Straight Type Levers - Limit Switch Levers

Steel shaft with bakelite knob.

Compatible Namco Limit Switch Series:EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990 only.

Ordering Numbers		R	A	B	D	L	Material
Part Number	Reference	R	A	B	D	L	Lever	Roller
EL100-55401	D1260JM	1"	7/8"	1/4"	90°	2"	Steel	Steel
EL100-55402	-	1"	7/8"	1/4"	90°	2"	Steel	Bryl. Cop.
EL100-55403	-	1"	7/8"	1/4"	90°	2"	Steel	S. S.

Check Namco limit switch series compatibility before ordering

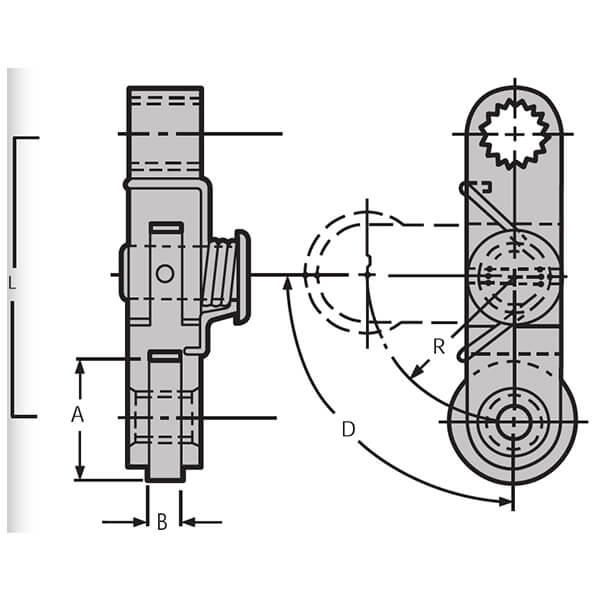

style-kr-levers-diagram
