C628 Elapsed Timer

Electronic Elapsed Timer

• AWESOME 0.71” high-digit LED display (27% larger than other 1/8 DIN units).
• Programmable color change display based on an event.
• Programmable help function and secondary legend display.
• Programmable for single input or cumulative operation.
• Choice of NPN or PNP primary input.
• Filter speed settable for 20, 200, or 10,000 Hz.
• Standard Outputs: 1 NPN transistor & 1 relay.
• Front panel reset enable and preset/alarm lockout.
• Optional RS-485 plug in card.
• CE approved, UL, CUL recognized.


Download Datasheet and Manual

Applications

C628 Elapsed Timer

The Veeder-Root C628 Elapsed Timers are members of a family of 1/8 DIN instruments which offer breakthrough display technology as well as easy-to-program user setup. Its large LED display features the ability to change color based on process status such as exceeding a preset alarm value. Therefore, when monitoring an application’s elapsed time, the C628 Elapsed Timer can provide operators with an instant visual alert to changes in the application’s status.

The C628 Elapsed Timer has a definable set value at which an output will activate. The unit can be programmed to operate in a cumulative (elapsed time continues to accumulate during all instances when the input is active) or single (time value will display the elapsed time of an individual input and will reset to zero for each successive new pulse) input function mode. In addition, the time format (seconds, minutes, hours, minutes & seconds, or hours & minutes) and timing direction (up or down) can be selected.

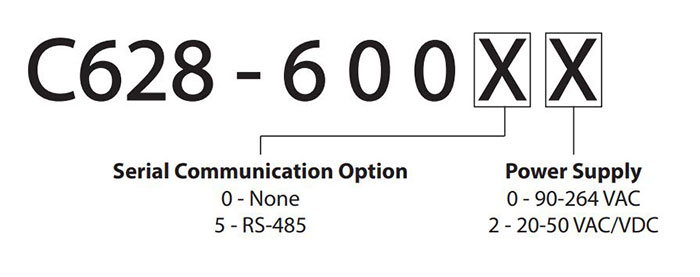

Ordering Information
