1127, 1128, 1129, 1130, 1131, 1132 Series Large Figure Totalizers

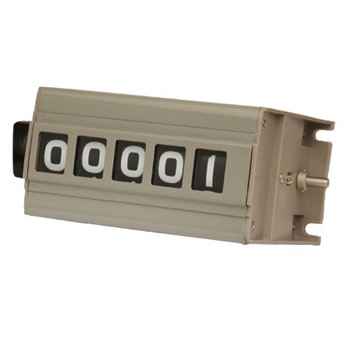

Large Figure Mechanical Totalizer

• Well defined 3/4 inch (19.0 mm) numbers.
• Five decades – counts to 99,999.
• Steel case and chrome on steel shaft.
• Lubrication is never required.
• Base mounting configuration.
• Easy installation.
• Low maintenance

Download Datasheet

Applications

1127, 1128, 1129, 1130, 1131, 1132 Series Large Figure Totalizers

Very large figures (3/4”) make these counters unmatched in character/figure size and easy to read at a distance. Simple, rugged, reliable base mount totalizers that even today embody the original time-tested design.

1127 Series - Direct Drive

Adds 10 counts for each drive shaft revolution in specified rotation. Subtracts for opposite rotation if reset knob is unobstructed.

1128 Series - Revolution Drive

Adds 1 count for each drive shaft revolution in specified rotation. Subtracts for opposite rotation if reset knob is unobstructed.

1129 Series - Ratchet Drive

Adds 1 count for each drive shaft revolution through 36 to 47 degrees arc. Max travel limited. Internal lever return spring.

1130 Series - Direct Drive, Non-Reset

Non Reset Version Available Upon Request

1131 Series - Revolution Drive, Non-Reset

Non Reset Version Available Upon Request

1132 Series - Ratchet Drive, Non-Reset

Non Reset Version Available Upon Request

Industries

• Oil and gas drilling and extraction machinery, industrial metalworking equipment such as punches and shears (position measuring and display).
