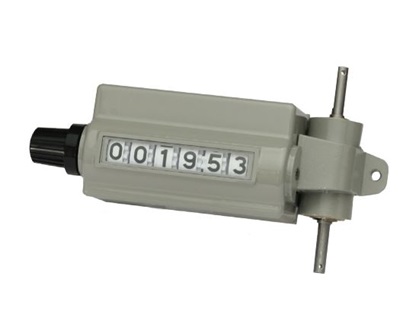

1953 Series Gear Driven VisiCounter Mechanical Totalizer

Dual Shaft Mechanical Counter Ideal for Linear Measurement

• Precision linear measurement of all types of moving materials.
• Double stainless steel shafts accept dual measuring wheels.
• Black on white, 0.345” (8.8 mm) high figures for easy viewing.
• Heavy duty die-cast and steel components.
• Corrosion and dust resistant – long life in demanding environments.
• Models with 3:1, 1:1, or 0.375:1 revolution-to-count ratio.
• Counts in yards, 1/8 yards, or feet using a standard footage wheel.
• Counts in meters, using 1/3 meter wheel.
• Smooth action rotary knob reset

Download Datasheet

Applications

1953 Series Gear Driven VisiCounter Mechanical Totalizer

Available in several geared ratios, the 1953 Series is especially well suited for linear measurement of feet, yards, 1/8 yards, or meters. Its doubleended shaft allows use of two measuring wheels – providing extra grip and stability of contact with measured material. It is commonly used in the textile, wire and cable, paper, rope, and sheet products industries.

The 1953 Series is designed and manufactured to provide years of trouble-free service in the most rigorous industrial applications. All models are right-hand drive, with types offered for addition in the clockwise, or counterclockwise direction. Opposite rotation subtracts.

Industries

• Linear measurement of textiles, sheet, roll, paper, rope, and cable products.
